EAE DALI Push Button Interface is used to convert conventional switches into DALI. Any dry contact outputs can be connected to PBI108 to be used with DALI.

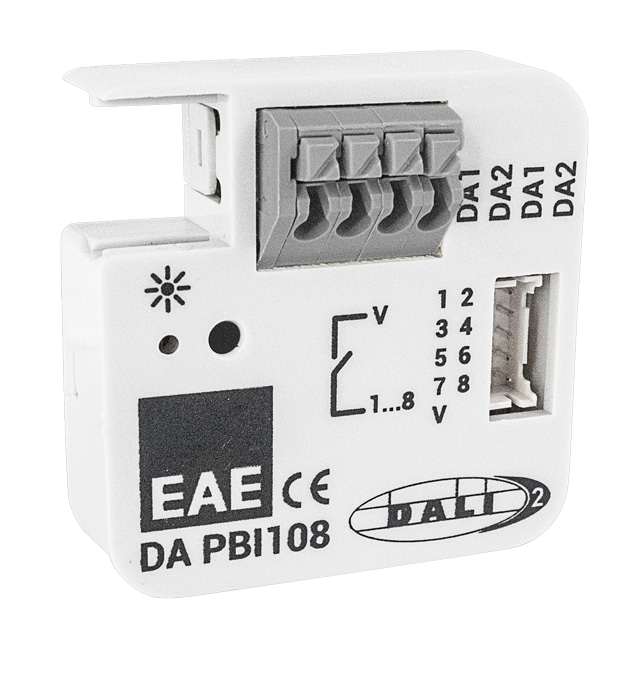

PBI108 - Push Button Interface
8 / 4 / 2 binary inputs
General Specifications
8 / 4 / 2 binary inputs as DALI-2 IEC 62386-301 Input devices - Push button instances
Device power supplied only via DALI line
Color-coded input cables
Compatible with conventional push buttons in flush-mounted sockets
The bus connection is enclosed DALI connection terminal
Bus connection is protected against accidental mains (110V/230V)
connection
Compatible with deep flush-mounted outlet boxes (60 mm x 60 mm)
Compatible with following DALI-2 standards
-
- Control device (IEC 62386-103 v2.0)
- Push button (IEC 62386-301 v2.0)
